Commercial Display

Go big using our 4K compatible video wall panels, with automatic tiling to fill any space

Super Narrow Bezel Matrix solutions

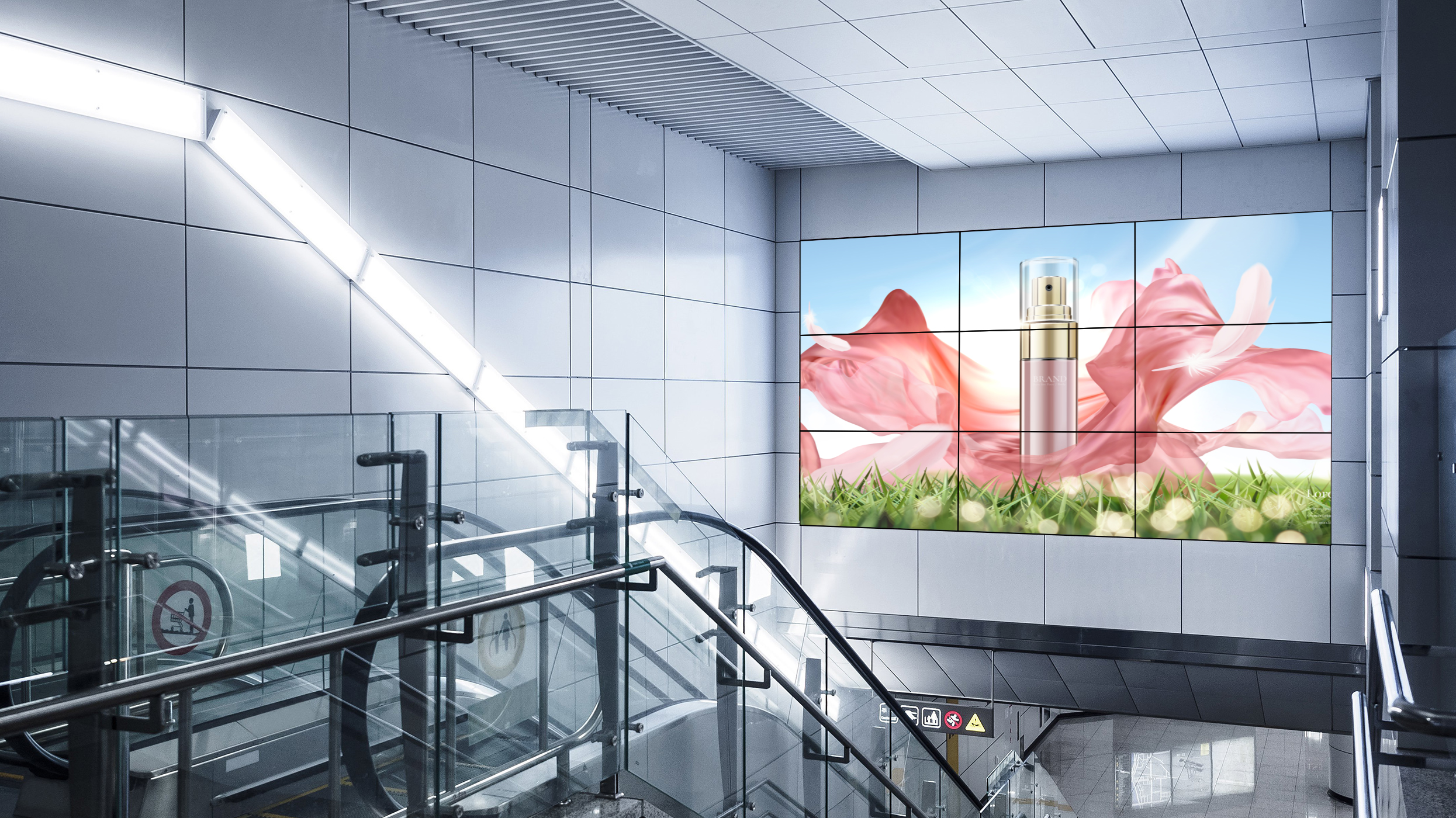

Seamless Video Wall

With a total screen-to-screen bezel size of 3.5mm these displays are ideal as part of a

virtually seamless LCD video wall – providing you with an eye catching, and content focused display. Their super narrow bezel allows you to build video walls of any size.

Daisy Chain Tiling

These displays feature a HDMI in and out so that you can daisy chain video walls of any size without the need for an expensive external matrix controller; providing a hassle free, cost-effective solution.

4K Compatible Video Walls

With large video walls content resolution is very important. If you have a 4K source you can achieve stunning Ultra High Definition resolution across your video wall configuration without having to purchase an external matrix controller.

Seamless Video Wall

49 Inch - TL49H7

Display Area

1074x604.3

Bezel Size

Bottom/right: 2.34, Top/left: 1.16

Unit Size

1077.5x607.8x113.8

Package Size

1267.5x877x291

VESA Holes

600x300

Net Weight

25kg

Gross Weight

31.5kg

Power Consumption (w)

155

55 Inch - TL55H7

Display Area

1209.9x680.7

Bezel Size

Bottom/right: 1.2, Top/left: 2.3

Unit Size

1213.4x684.2x117.9

Package Size

1400x950x280

VESA Holes

600x300

Net Weight

31.5kg

Gross Weight

40.6kg

Power Consumption (w)

160

Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m²)

500

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

4000:1

Backlight Life

70,000 Hours

AV Inputs/Outputs

Inputs

HDMI In, DVI In, VGA In, RS-232 In, DP In, USB

Outputs

RS-232 Out x 2, HDMI Out, Audio Out

Power

Input Voltage

100V ~ 240V(50/60Hz)

Power Management

VESA DPMS

Environmental

Operating Temperature

0°C to 50°C

Operating Humidity

10% to 90%

Working Pressure

800-1114 hPa (Altitude:0-2,000m)

Accessories

Included

1.5m HDMI Cable, LAN Cable and IR Sensor, Remote Control, 1.5m Power Cable, User Manual

Optional

Network or Standalone Media Player, Touch Screen Frame

4K Compatible Video Walls

Seamless Video Wall

Multiple Inputs

Wide range of video inputs, such as HDMI, VGA, DVI and DisplayPort. These are ideal if the screens are being used individually or being run from an external matrix controller.

Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen meaning that it is only in use when it needs to be; improving your environmental efficiency.

Smart Temperature Control

A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your screen.
